DimensionsMachinePackaged
Widthmm22902340
Depthmm40503680
Heightmm14251625
WeightKg16002050
Volumem313,2213,99
Length foldingCrossfolding
LinesFoldsLinesFolds
11-2 (1/2)-(1/3)11-2 (1/2)-(1/2)(1/3)
Technical Specifications
Create Account o Login to see Technical Specifications

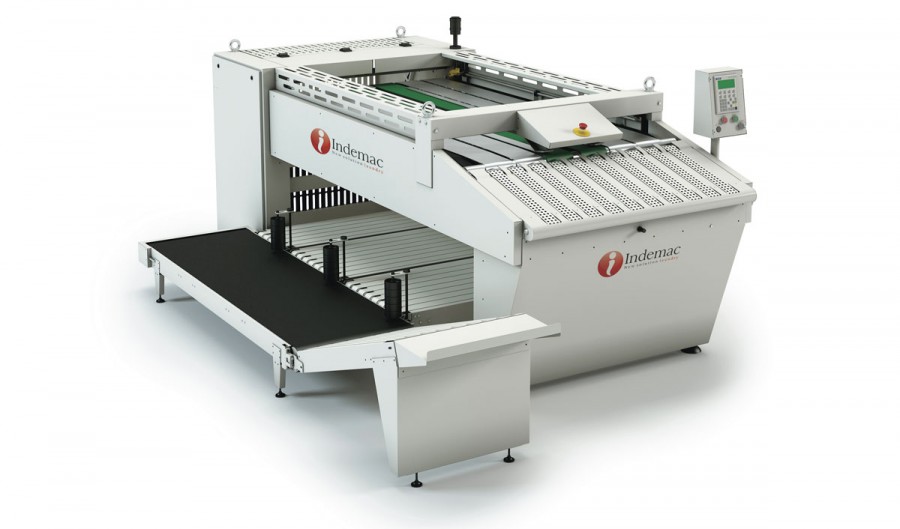

Terry folder

FTI
Roll diameter mm---
Working width mm---
Max production900 pz/h
Ironing speed variable from---
Working lanes longitudinal and transversal---

  • Working mode: manual
  • Working cycle: 4 seconds
  • Max dimensions of items to fold: 1060x2000 mm
  • Max dimensions of folded items: 400x500 mm
  • Folding belts speed 50 m/min
  • Vacuum table to make easy and better the feeding
  • Microprocessor control (PLC) that allows to fold
  • the linen in according with its dimensions and create 20 working programs
  • Alarms shown on display LCD
  • Side exit on conveyor belt (right-left), (front-back)
  • By-pass on crossfolding
  • Length folding by air jets
  • Crossfolding by air jets and rotating rolls
  • Automatic reject too big items
  • Compact machine: surf. max. less than 10 mq
  • Optionals
  • Linen reject
  • Supply different than 400V-3Ph-50Hz
